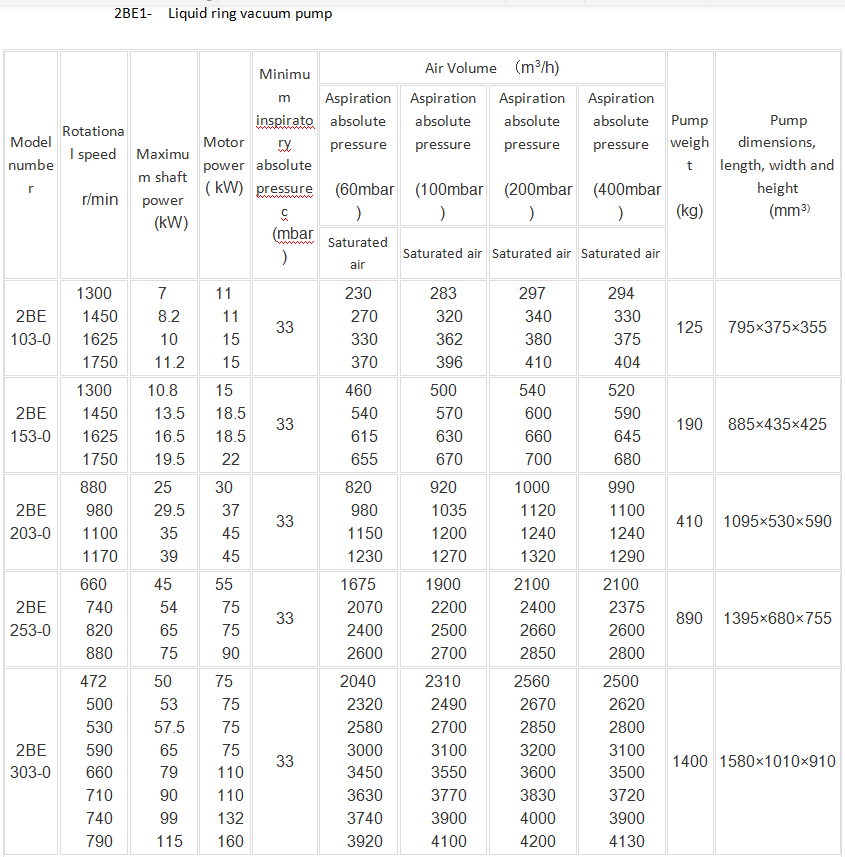

2BE1 series water ring vacuum pump
Date of issue:2021/9/23 10:29:05 Number of Views:
Note: The Motor Power selected above can work under most working conditions. If the exhaust port pressure is higher (0.02 ~ 0.05 MPA) , the motor power should be increased correspondingly; if the shaft power of 2BE1 vacuum pump is lower when working normally, the motor power close to the shaft power can also be chosen, so it is more energy-saving. Note: The water temperature of water-ring vacuum pump has a great influence on its performance, and the performance curves of water-ring vacuum pump are all measured at 15 °c water temperature, therefore, the pumping rate of water-ring vacuum pump should be modified when the water-ring vacuum pump is selected. Correction: water temperature on the performance of water-ring vacuum pump.
Note: The Motor Power selected above can work under most working conditions. If the exhaust port pressure is higher (0.02 ~ 0.05 MPA) , the motor power should be increased correspondingly; if the shaft power of 2BE1 vacuum pump is lower when working normally, the motor power close to the shaft power can also be chosen, so it is more energy-saving. Note: The water temperature of water-ring vacuum pump has a great influence on its performance, and the performance curves of water-ring vacuum pump are all measured at 15 °c water temperature, therefore, the pumping rate of water-ring vacuum pump should be modified when the water-ring vacuum pump is selected. Correction: water temperature on the performance of water-ring vacuum pump.
