V063

Specification type：V063

· rated flow：63m³ /h

· extreme vacuum：0.1～0.5 mbar

· motor power：2.2 kW

· rated voltage：380 V / 220 V

· Suction diameter：G1 1/4"

· rated speed：1440r/min

· noise level：≤ 65dB

· fuel consumption：2.5L

· machine weight：65 kg

· profile size (length * Width * Height mm):650*400*295

product description

V-series single-stage Rotary Vane vacuum pump is a basic type of vacuum acquisition equipment using oil circulation lubrication, air-cooled type durable, reliable and economical for the removal of ordinary air or a small amount of condensable gas

For a wide range of industrial applications in the coarse-low vacuum range.

 Product characteristics

Standard Motor direct drive, can be customized special requirements motor structure compact and light, especially suitable for equipment equipped with suction outlet using standard thread, connection convenient equipped with high-efficiency oil and gas separation device, exhaust clean

Smooth and quiet operation, no special fixed or shock absorber reliable oil circulation structure, suitable for long-term continuous operation, easy installation and maintenance, low operating costs.



 Typical application

   * Thermoforming (plastic suction, air pressure, foaming) molding

   * Vacuum packaging equipment and food processing technology

   * Vacuum degassing, defoaming, infiltration, concentration, drying

   * Vacuum Adsorption, fixture, sling, Suction Cup

   * Vacuum pressing, setting, film sticking

   * Vacuum Crystallization, distillation, injection and cooling

   industry-appropriate

   * Vacuum packaging and food processing machinery

   * Vacuum forming-forming equipment

   * Vacuum drying and filtering equipment

   * Equipment for degassing and soaking of materials

   * Vacuum of mould cavity

   * Vacuum manipulator or worktable, etc.

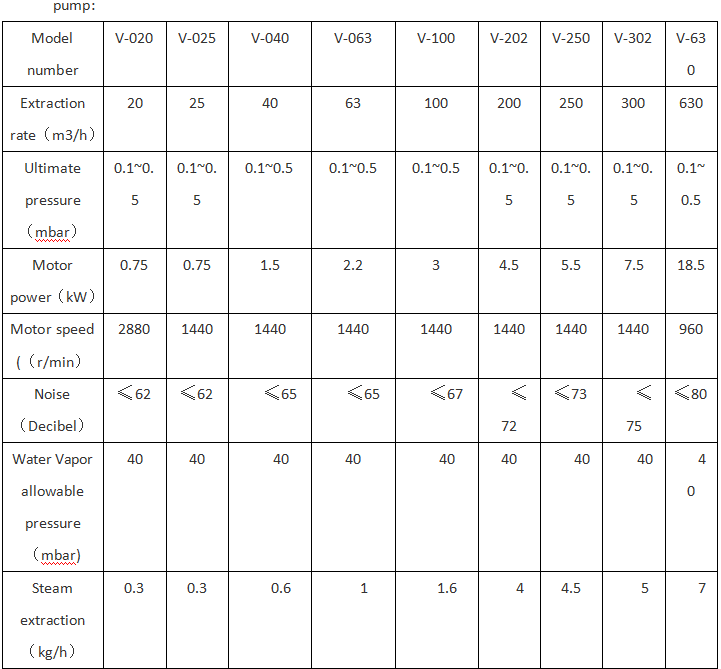

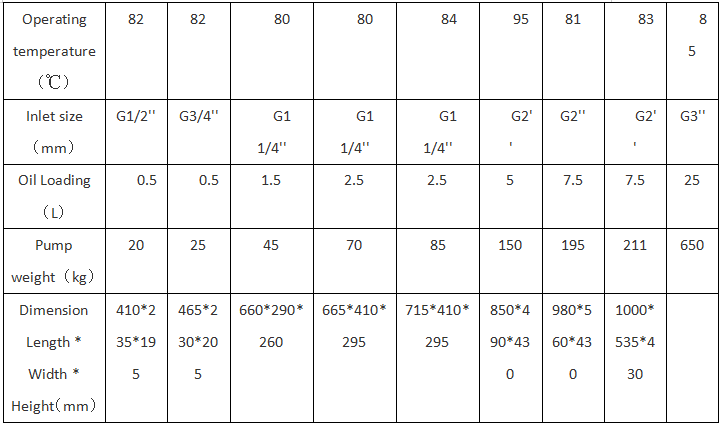

Table of technical parameters of v-type single stage series Rotary Vane vacuum
