V040

Specification type：V040

· rated flow：40m³ /h

· extreme vacuum：0.1～0.5 mbar

· motor power：1.5 kW

· rated voltage：380 V / 220 V

· Suction diameter：G1 1/4"

· rated speed：1440r/min

· noise level：≤ 65dB

· fuel consumption：1.5L

· machine weight：45 kg

· profile size (length * Width * Height):660*290*260mm

product description

V-series single-stage Rotary Vane vacuum pump is a basic type of vacuum equipment using oil circulation lubrication, air-cooled type durable, reliable and economic for the removal of ordinary air or a small amount of condensable gas

• For a wide range of industrial applications in the coarse-low vacuum range.



 Product characteristics

Standard Motor direct drive, can be customized special requirements motor structure compact and light, especially suitable for equipment equipped with suction outlet using standard thread, connection is convenient equipped with high-efficiency oil and gas separation device, exhaust clean operation smooth and quiet, no special fixed or shock absorber reliable oil circulation structure, suitable for long-term continuous operation, easy installation and maintenance, low operating costs.

Typical application

Thermoforming (plastic suction, air pressure, foaming) molding

Vacuum packaging equipment and food processing technology

Vacuum degassing, defoaming, infiltration, concentration, drying

Vacuum Adsorption, fixture, sling, Suction Cup

Vacuum pressing, setting, film sticking

Vacuum crystallization, distillation, injection, cooling

Suitable for the industry



  * Vacuum packaging and food processing machinery

 * Vacuum forming-forming equipment

   * Vacuum drying and filtering equipment

   * Equipment for degassing and soaking of materials

   * Vacuum of mould cavity

   * Vacuum manipulator or worktable, etc.

   * Small and medium-sized mobile vacuum station

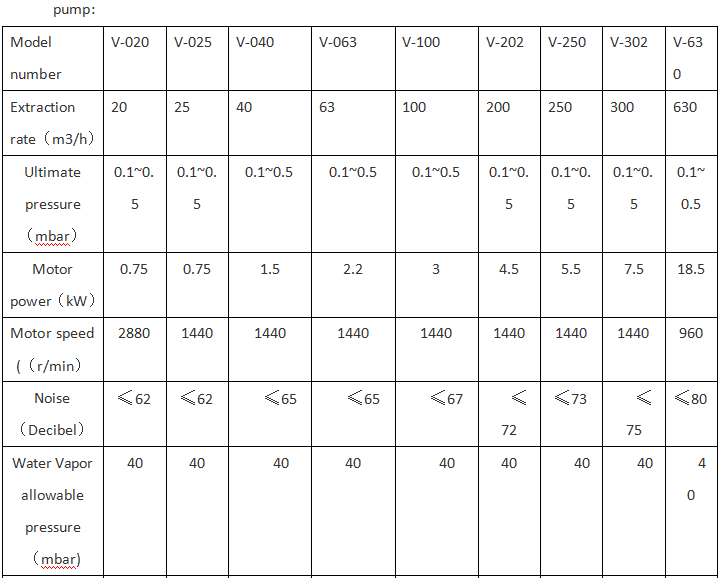

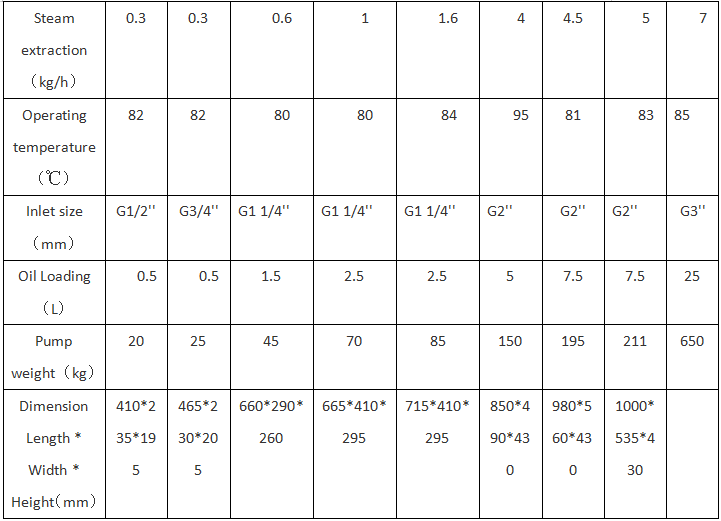

Table of technical parameters of v-type single stage series Rotary Vane vacuum
