V020-V-TYPE SINGLE-STAGE VANE-Zibo Xincheng Machinery Co. , Ltd.
Focus on vacuum pump 8615653321000 Popular search:Vacuum pump/water ring vacuum pump/liquid ring vacuum pump

PRODUCT CENTER

V020

Date of issue:2021/9/23 9:56:12 Number of Views:


Specification type:V020

rated flow:20m³ /h

extreme vacuum:0.1~0.5 mbar

motor power:0.75 kW

rated voltage:380 V / 220 V

Suction diameter:G 1/2"

rated speed:2880r/min

noise level:≤ dB

fuel consumption:0.5L

machine weight:20 kg

profile size (length * Width * Height):320*230*215mm


product description

v-series single-stage Rotary Vane vacuum pumps are a basic type of vacuum acquisition equipment with oil circulation lubrication, air-cooled, rugged, reliable and economical for the removal of ordinary air or small amounts of condensable gases

For a wide range of industrial applications in the coarse-low vacuum range.

Product characteristics

Standard Motor direct drive, can be customized special requirements motor structure compact and light, especially suitable for equipment equipped with suction outlet using standard thread, connection convenient equipped with high-efficiency oil and gas separation device, exhaust clean

Smooth and quiet operation, no special fixed or shock absorber reliable oil circulation structure, suitable for long-term continuous operation, easy installation and maintenance, low operating costs.

  Typical application

    * Thermoforming (plastic suction, air pressure, foaming) molding

   * Vacuum packaging equipment and food processing technology

   * Vacuum degassing, defoaming, infiltration, concentration, drying

   * Vacuum Adsorption, fixture, sling, Suction Cup

   * Vacuum pressing, setting, film sticking

   * Vacuum crystallization, distillation, injection, cooling

   Suitable for the industry

    * Vacuum packaging and food processing machinery

   * Vacuum forming-forming equipment

   * Vacuum drying and filtering equipment

   * Equipment for degassing and soaking of materials

   * Vacuum of mould cavity

   * Vacuum manipulator or worktable, etc.

   * Small and medium-sized mobile vacuum station

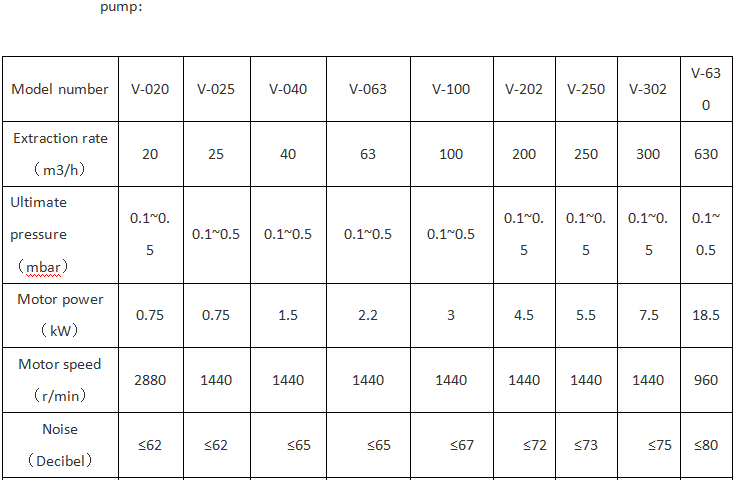

Table of technical parameters of v-type single stage series Rotary Vane vacuum



Specification type:V020

rated flow:20m³ /h

extreme vacuum:0.1~0.5 mbar

motor power:0.75 kW

rated voltage:380 V / 220 V

Suction diameter:G 1/2"

rated speed:2880r/min

noise level:≤ dB

fuel consumption:0.5L

machine weight:20 kg

profile size (length * Width * Height):320*230*215mm


product description

v-series single-stage Rotary Vane vacuum pumps are a basic type of vacuum acquisition equipment with oil circulation lubrication, air-cooled, rugged, reliable and economical for the removal of ordinary air or small amounts of condensable gases

For a wide range of industrial applications in the coarse-low vacuum range.

Product characteristics

Standard Motor direct drive, can be customized special requirements motor structure compact and light, especially suitable for equipment equipped with suction outlet using standard thread, connection convenient equipped with high-efficiency oil and gas separation device, exhaust clean

Smooth and quiet operation, no special fixed or shock absorber reliable oil circulation structure, suitable for long-term continuous operation, easy installation and maintenance, low operating costs.

  Typical application

    * Thermoforming (plastic suction, air pressure, foaming) molding

   * Vacuum packaging equipment and food processing technology

   * Vacuum degassing, defoaming, infiltration, concentration, drying

   * Vacuum Adsorption, fixture, sling, Suction Cup

   * Vacuum pressing, setting, film sticking

   * Vacuum crystallization, distillation, injection, cooling

   Suitable for the industry

    * Vacuum packaging and food processing machinery

   * Vacuum forming-forming equipment

   * Vacuum drying and filtering equipment

   * Equipment for degassing and soaking of materials

   * Vacuum of mould cavity

   * Vacuum manipulator or worktable, etc.

   * Small and medium-sized mobile vacuum station


Table of technical parameters of v-type single stage series Rotary Vane vacuum
